备注

Go to the end 下载完整的示例代码.

Solarized Light 样式表#

此示例展示了 "Solarized_Light" 样式,它试图复刻以下风格:

以及以下的工作:

使用调色板的所有 8 种强调色 - 从蓝色开始

待办事项:

  • 为条形图和堆积图创建 alpha 值..33 或 .5

  • 应用布局规则

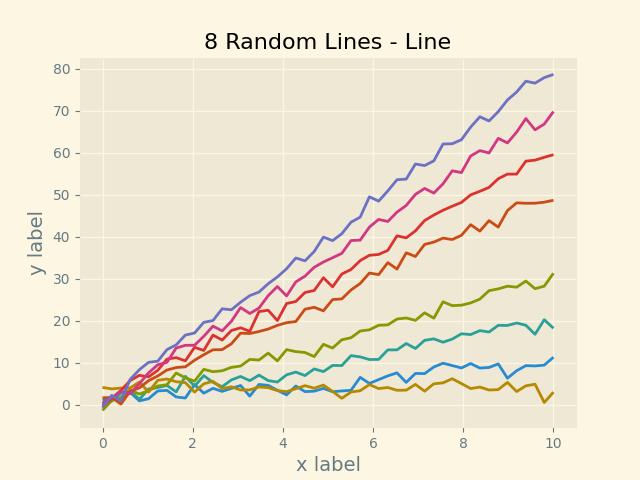

8 Random Lines - Line
import matplotlib.pyplot as plt
import numpy as np

# Fixing random state for reproducibility
np.random.seed(19680801)

x = np.linspace(0, 10)
with plt.style.context('Solarize_Light2'):
    plt.plot(x, np.sin(x) + x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 2 * x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 3 * x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 4 + np.random.randn(50))
    plt.plot(x, np.sin(x) + 5 * x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 6 * x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 7 * x + np.random.randn(50))
    plt.plot(x, np.sin(x) + 8 * x + np.random.randn(50))
    # Number of accent colors in the color scheme
    plt.title('8 Random Lines - Line')
    plt.xlabel('x label', fontsize=14)
    plt.ylabel('y label', fontsize=14)

plt.show()

Gallery generated by Sphinx-Gallery
