在误差线中包含上限和下限

在 matplotlib 中,误差线可以有"limits".将限制应用于误差线本质上使误差成为单向的. 因此,可以通过 uplims , lolims , xuplims 和 xlolims 参数分别在 y 和 x 方向上应用上限和下限. 这些参数可以是标量或布尔数组.

例如,如果 xlolims 是 True ,则 x 误差线将仅从数据向递增值延伸. 如果 uplims 是一个填充了 False 的数组,除了第 4 个和第 7 个值之外,所有 y 误差线都将是双向的,除了第 4 个和第 7 个误差线,它们将从数据向递减的 y 值延伸.

import matplotlib.pyplot as plt
import numpy as np

# example data
x = np.array([0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0])
y = np.exp(-x)
xerr = 0.1
yerr = 0.2

# lower & upper limits of the error
lolims = np.array([0, 0, 1, 0, 1, 0, 0, 0, 1, 0], dtype=bool)
uplims = np.array([0, 1, 0, 0, 0, 1, 0, 0, 0, 1], dtype=bool)
ls = 'dotted'

fig, ax = plt.subplots(figsize=(7, 4))

# standard error bars
ax.errorbar(x, y, xerr=xerr, yerr=yerr, linestyle=ls)

# including upper limits
ax.errorbar(x, y + 0.5, xerr=xerr, yerr=yerr, uplims=uplims,
            linestyle=ls)

# including lower limits
ax.errorbar(x, y + 1.0, xerr=xerr, yerr=yerr, lolims=lolims,
            linestyle=ls)

# including upper and lower limits
ax.errorbar(x, y + 1.5, xerr=xerr, yerr=yerr,
            lolims=lolims, uplims=uplims,
            marker='o', markersize=8,
            linestyle=ls)

# Plot a series with lower and upper limits in both x & y
# constant x-error with varying y-error
xerr = 0.2
yerr = np.full_like(x, 0.2)
yerr[[3, 6]] = 0.3

# mock up some limits by modifying previous data
xlolims = lolims
xuplims = uplims
lolims = np.zeros_like(x)
uplims = np.zeros_like(x)
lolims[[6]] = True  # only limited at this index
uplims[[3]] = True  # only limited at this index

# do the plotting
ax.errorbar(x, y + 2.1, xerr=xerr, yerr=yerr,
            xlolims=xlolims, xuplims=xuplims,
            uplims=uplims, lolims=lolims,
            marker='o', markersize=8,
            linestyle='none')

# tidy up the figure
ax.set_xlim((0, 5.5))

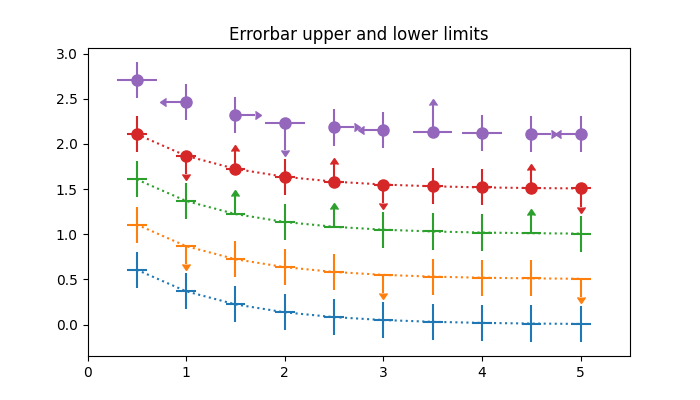

ax.set_title('Errorbar upper and lower limits')
plt.show()

Tags: plot-type: errorbar domain: statistics

参考

以下函数,方法,类和模块的用法在本例中显示:

• matplotlib.axes.Axes.errorbar / matplotlib.pyplot.errorbar
