折线图

创建一个基本的折线图.

import matplotlib.pyplot as plt
import numpy as np

# Data for plotting
t = np.arange(0.0, 2.0, 0.01)
s = 1 + np.sin(2 * np.pi * t)

fig, ax = plt.subplots()
ax.plot(t, s)

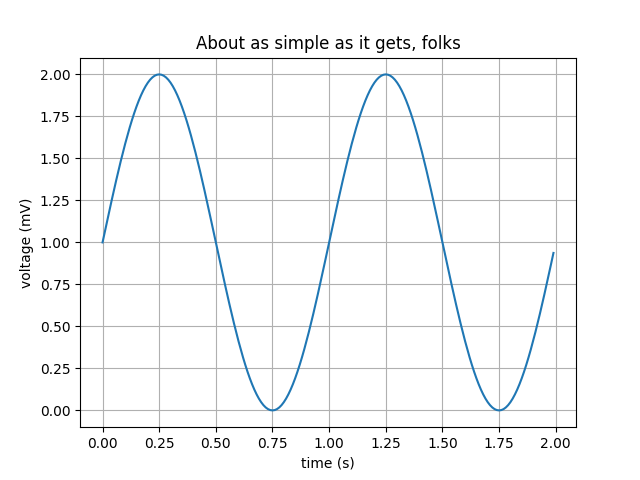

ax.set(xlabel='time (s)', ylabel='voltage (mV)',
       title='About as simple as it gets, folks')
ax.grid()

fig.savefig("test.png")
plt.show()

参考

以下函数,方法,类和模块的用法在本例中显示:

• matplotlib.axes.Axes.plot / matplotlib.pyplot.plot

• matplotlib.pyplot.subplots

• matplotlib.figure.Figure.savefig

标签: plot-style: line level: beginner
